1330 Fiber Laser cutting machine
Model Number:SE-1330
Place of Origin:china
Added:2019-07-26
Views:times
Telephone:+86 531 67811996
Keywords:Fiber laser,fiber cutter, fiber,fiber laser machine,fiber machine
Next Previous

Detailed

Industrial Applications:


Applied in a variety of industries, such as medical microelectronics, spectacle frame, metro or auto accessories, mechanical parts, arts and crafts, hardware, advertising, etc.

Applicable for high-speed cutting on various metal plates such as S/S, carbon steel, galvanized sheet, electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials


Machine Produce technicial point:

1.High strength machine tool have relieved the internal stress through aging annealing treatment to ensure a long-term stability and accuracy.

2.Double drive design,high precision rack gear and guide rail

3.The grantry adopts the cast aluminum ,cast beaming,reduce the weight of machine to run more smooth.

4.Movable handle control with convenient operation

5.Smooth and fine edge or surface and small distoration

6.Receiving system is convenient for collecting the material

7.Dedicated software enables graphic or test to instantly designed or processed


Fiber laser cutting machine

Model/working area

1300x3000mm;

Max.Idle speed

50m/m

feeding height

100mm

table

array Thicken knife table

driver type

X,Y axis:Japan original Fuji 750w AC servo motor,Shimpo reducer

Z Axis:Japan original Fuji 750w AC servo motor,Shimpo reducer

laser generator

MAX 500w (optional 750w,1000w)

laser cutting head

Original weihong fiber laser special cutting head

control system

Original weihong fiber laser special control system

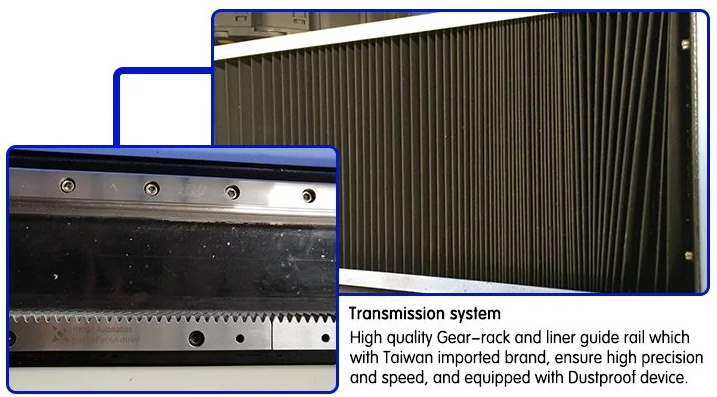

X,Y Guide rail and transmission

HGW25HC liner rail

Germany high precision precision milling rack

Z Guide rail and transmission

HGW15HC liner rail

Germany high precision precision milling rack

Reducer

Original Japanese shinpo

distribution box

Large independent cabinet

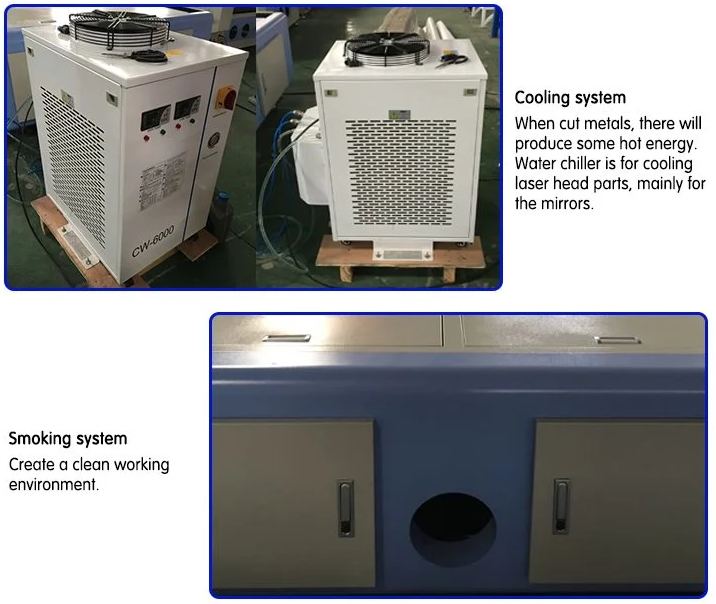

cooling system

HK500 Industrial chiller

lubrication system

Electric

dustproof

X,Y axis with

working power

220v/50hz
