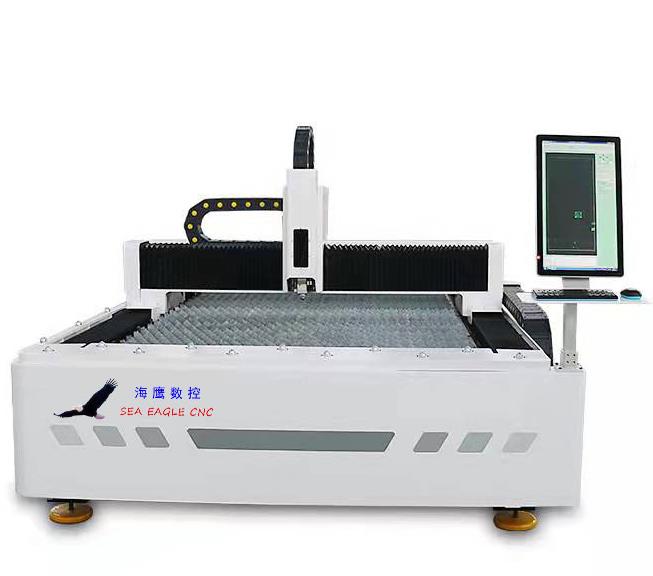

1530 fiber laser cutting machine
Model Number:1530/1330
Place of Origin:china
Added:2021-12-08
Views:times
Telephone:+86 531 67811996
Keywords:
Next Previous

Detailed

Commodity

Model

Quantity

Unit Price

Total Amount

1

Fiber Laser Cutting Machine

EOE 1530

1



-Scope of Supply-


Resonator

CNC

Machine Frame

Cutting Head

Cooling Chiller

Max 3000W

Cypcut 2000

1500*3000mm

Raytools

Teyu

1

1

1

1

1




Detailed configuration

1 professional cypcut control system

2 Domestic 750w servo motor with brake

3 20 high-precision square rail

4 Overall steel weighing design

5 Heavy-duty body with exhaust duct

6 Industrial computer With a 19-inch screen, it is more in line with the habit of using a computer.

7 Swiss raytool laser head with red light positioning operation is more stable and convenient

8 Chuangxin (The MAX3000W) laser

9 Planetary speed reducer

10 dual-cooling chiller is more professional and can work for a long time.

11 The new appearance design is more beautiful.

12 Pressure-resistant and explosion-proof water pipes and air pipes ensure the safe and stable operation of the machine under special circumstances.

13 1.25 film industrial rack.

14 Fully enclosed fireproof is a high and low temperature towline, which ensures the safety of the operation site.

15 Y-axis flame retardant dust cover.

16 Schneider electronic components in France

17 Highly flexible, anti-breaking, cable that can shield external interference signals

18 Fully automatic oiling system

19 Easy-to-feed bull's eye wheel

20 High-strength body leveling feet, more suitable for different venues of customers, ensuring high quality Operational cutting

21 professional serrated blade (with anti-scratch iron plate function)

22 air cushion film cling film pearl cotton three-layer soft packaging standard
23 high pressure proportional valve, automatic mixed oxygen and other The volume and pressure of the gas, thus more convenient operation

24 Standard outlet wooden box(Metal square pipe reinforcement support below for easy unloading)

25 Give a boss tutorial showing you how to map and save an engineer

26 Autofocus

Name

Paramerers

Unit

Machine model

1530


Laser Source

Max 3000

w

Water cooler Power

3

kw

Software

Cypcut2000


Guide



Rack



Servo Motor

Domestic 750w servo motor with brake

750W

Reducer



Minimum cutting width

0.08-0.1

mm

Maximum cutting thickness

20Carbon steel

12stainless steel

mm

Maximum moving speed

90

m/min

Electricity requirements

380/50,60

v/hz

Graphic Format Supported

PRO/E.UG, Solidworks


Acceleration

0.5

G

Total power

13

kw

Presser of N2/O2/AIR

15-20/6-8/15-30

bar

Total Weight

3

t

Work per day

16

h

Lay out

3.7*2.3*1.6

m

Oil Box

Auto Oil Injection System
