RT-1325 CNC rotuer machine for woodworking further
Model Number:RT-1325
Place of Origin:china
Added:2016-02-17
Views:times
Telephone:+86 531 67811996
Keywords:cnc router,cnc engraver,cnc machine,cnc carver
Next Previous

Detailed

RT-1325

Application fields

CNC Wood Routers are used for woodworking such as hollow wood caving, relief wood carving, plane wood carving, 3D wood carving, Furniture production, etc.

1. engaged in arts, gifts, crafts, signs, marks, logos, moulds, models, boxes, etc. for advertising, home using or school teaching, .

2. wood production, such as solid wood door, Craft wood door, MDF door, screens, windows, table and chairs, Cabinet, Room decoration, etc.

3.some woodworking works like customized panel furniture production, we also have Intelligent CNC Routers with auto nesting software, it has full functions of automatically uploading and downloading, automatically nesting, labeling, optimizing, vertical drilling, slotting, grooving, cutting, carving and engraving, etc.

4. This machine is perfect for 3d engraving and flat objects at the same time. it is widely used in 3D carved plates with wave patterns, cabinet door, solid wooden door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and the panel furniture auxiliary processing etc.

5. Suitable for woodworking, stone, soft metal, plastic, PPE, PPR, advertising and other industries


model like below


一、 MACHINE BODY

Usually it is made of 4mm steel plate. Total weight is about 1000kgs. Some clients ask us to make it use 6mm, 8mm.

So that the machine is very strong.

Manufacturing process:

Cutting (CNC flame cutting) pre-processing (beveling) welding (carbon dioxide gas shielded welding) annealing (about 24 hours) planing clamp installation of composite guide rail completion

Of course, the price of beds with different thicknesses is different. Please tell me, which one do you choose?

A, 3~4mm

B, 5~6mm

C, 7~9mm

Please select the appropriate control system according to your usage habits. If you have any questions, pls contact Mr.Xinyu whatsapp/wechat is +86 18615216576

二、CONTROL SYSTEM

A、 DSP A11

· Product Feature

· New three-axis linkage motion mode to achieve comprehensive controlling

· Support XYZ axis driver and spindle error alarm function

· Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.

· Support intelligent file checking function.

· Parameter backup and restore function to prevent the loss of important parameters.

· High anti-jamming intensity passes many CE tests.

· Intelligent processing memory, supports power fail safeguard and breakpoint function.

· Definable I/O interfaces provide customers a wide range of development platforms.

Product Model

RichAuto----A11

CPU

DSP

Internal Memory

512Mb

Display Screen

128*64 Monochrome LCD

Communication Port

U disk、USB cable

Controlled Axis Number

3 axis

Control Signal

differential signal

Drive System

step motor/servo motor

Minimum Input Unit

0.001mm

No Volt Protection

Support

Breakpoint Processing Function

Support

External Power Supply Voltage

24V DC

Manual Mode

Continuous、point move、distance

Interpolation Method

line、arc、curve

Soft/Hard Limit

support

Maximum Pulse Frequency

1M/S

Password Protection

support

Support Language

simple Chinese/traditional Chinese、English、other languages

Standard Configuration

(1) DSP Handle;(1) 50 core cable (1)USB cable; (1)8 I/O Wiring board;(1) data CD

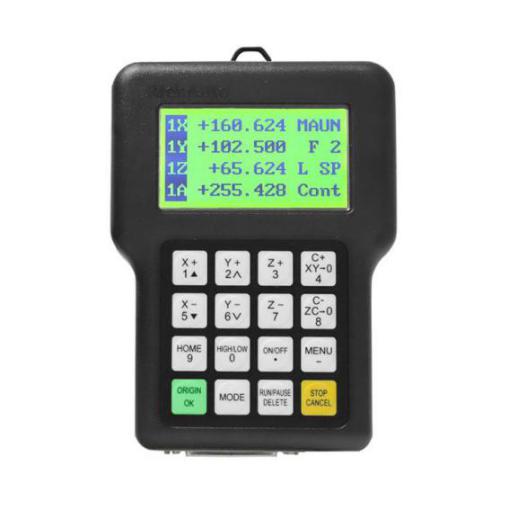

B、 DSP A18

· Product Feature

· 4 axis linkage motion control mode.

· Standard configure 8I/O interface board.

· Support 9 workpiece coordinates, 8 breakpoints storage positions.

· Support mobile calibration & fixed calibration, Tool setting position and speed are configurable.

· Support free mark for rotary axis (choose A, B, C)

· The fourth axis can be set as a normal axis or a rotary axis.

· HIGH/LOW manual speed switching, fine adjusting and distance setting.

· Offer system alarms for XYZ axis drivers, inverter, E-stop switch and hard limits.

· Support tool broken continue, breakpoint resume, Intelligent power failure recovery.

· Support special processing requirements such as array work, mill plane, zoom and part work

· Stop position and status can be set as user’s requested.

· Product Parameters

Product Model

RichAuto----A18

CPU

DSP

Internal Memory

512MB

Display Screen

128*64 Monochrome LCD

Communication Port

U diskUSB cable

Controlled Axis Number

3 axis

Control Signal

differential signal

Drive System

step motor/servo motor

Min.Input Unit

0.001mm

No Volt Protection

support

Breakpoint Processing Function

support

External Power Supply Voltage

24V DC

Manual Mode

Continuouspoint movedistance

Interpolation Way

linearccurve

Soft/Hard Limit

support

Max. Pulse Frequency

1M/S

Password Protection

support

Support Language

simple Chinese/traditional ChineseEnglishother languages

Standard Configuration

(1) DSP Handle(1) 50 core cable (1)USB cable(1)8 I/O Wiring board;(1) data CD

· CNcstudio (basic model)

·

1. After the blackout in the boot can breakpoint continue engraving.
2. The sports card can save ten artifacts the origin.
3. Can read carved eng files and PLT file format of the dao road.
4. Be able to connect to electric spindle inverter to realize the speed control software.
5. Strong software compatibility support type3 / artcam/castmate/jdpaint/ty and other CAM/cad design software.
6. Carving mechanical control card, 3 axis control, version 5.4.49 above, is widely used in all kinds of CNC engraving machine, mechanical engraving machine, advertising engraving machine, stone engraving machine, cylinder engraving machine, woodworking engraving machine engraving machine and DIY.
7. Note: weihongka one. 2 a line card to send special 5.4.49 software and connection of a complete set of drawings
The system can directly support the UG, MASTERCAM, CASMATE, Art CAM, AUTOCAD, CorelDraw and other CAD/CAM software to generate G code, PLT code format and carved ENG processing format (carved file does not need to transform the format).
The system can with a variety of three-dimensional carving machine, three-dimensional carving and milling machine used together. Suitable for all kinds of carving machine.

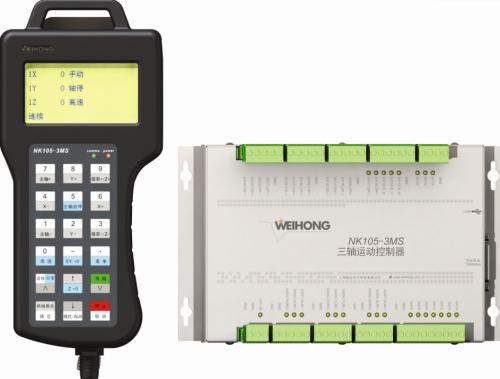

DNK105 G2G3

CNC specification standard control axis number: three axes
Hardware specifications
CPU: Arm Cortex-A8
Main frequency: 800MHz
RAM: 512MB
FLASH: 512MB
Display: 128×64 LCD display
Module I/O number: I16/O20
Performance indicators: After electromagnetic interference, group pulse and surge tests, the product reaches the fourth level protection standard of GB/T 17626.5-2008
Vibration resistance complies with GB/T 2423.10-2008 standard
After high and low temperature testing, it reaches the industrial standard (GB/T 2423.102-2008)
Software language: support Chinese, English, Polish, Vietnamese

Please select the appropriate control system according to your usage habits. If you have any questions, pls contact Mr.Xinyu whatsapp/wechat is +86 18615216576

三、Spindle

Pls select your want.



(Of cause, we have many power, like 2.2kw, 4.5kw, 6kw, ...if you want , pls contact with Mr.Xinyu, whatsapp is +86 18615216576)

四、Mian Driver

A、Leadshine MA860H

Description:
The MA860H Stepper Driver Board Controller is a high performance microstepping driver based on pure-sinusoidal current control technology. With this technology and the self-adjustment technology (self-adjust current control parameters) for different motors, the drive motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drivers in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors, so the Nema23, Nema34 and Nema42 stepper motors with a 2.6A-7.2A current will be suitable.
?Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y tables, labeling machines, laser cutters, engraving machines, and pick-place devices
?Suitable for a wide range of stepping motors, from NEMA size 23 to 42
?For processing various pattern mould
?For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc.
?For carving portrait, scenery, handwriting, sealing, etc.

Features:
1.High performance, cost-effective
2.Supply voltage from "18V AC to 80V AC" or "24V DC to 110V DC"
3.Output current from 2.6A to 7.2A
4.Self-adjustment technology, full to half current self-adjustment when motors from work to standstill via switching off SW4
5.Pure-sinusoidal current control technology
6.Pulse input frequency up to 300 KHz

7. TTL compatible and optically isolated input
8.Automatic half-current reduction as long as switching off SW4 when motors stop
9.16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
10.Suitable for 2-phase and 4-phase motors
11.Support PUL/DIR and CW/CCW modes
12.Short-voltage, over-voltage, over-current and short-circuit protection, protect the PC, motors, driver etc from being damaged
13.External Fan Design to avoid overheat

B、Yako 2811MA


High performance, low noise with excellent stability and low cost

1. 16 constant-torque microstep settings, 200 microsteps the highest

2. Unique control circuit, effectively reducing noise and increasing rotation smoothness

3. 200Kpps response frequency

4. After step pulse stops for 100ms, output current change to 20%~80% (based STOP setting)

5. Bipolar constant current wave chopping mode, improve motor speed and power

6. Photoelectric isolated signal input/output

7. Drive current adjustable from 0.5A/phase to 8A/phase

8. Sole power input, voltage range: AC60~110V

9. Fault protection: over current, overheat, low voltage protection

10. Small size: 200*156*80mm, 2.3kg

Typical Application:

Mainly used in engraving machine, CNC machine, packaging equipment, polishing equipment, constant speed applications, laser cutting machine and textile equipment.

C, Leadshine HBS758

Feature:

1. 32-bit DSP vector closed-loop control technology, external digital debugging panel, stable performance

2. Completely overcome the step stepping stepper motor to enhance the motor high-speed performance

3. A large torque boost, 20% higher than the open-loop stepper drive, effective torque to 70% of the holding torque, so that the motor in the high-speed movement can also maintain high torque operation

4. Its own low heat dissipation, heat dissipation capacity, improve operating efficiency, comes with cooling fan

Parameter:

1. Model: HBS758 drive

2. Working voltage: 50-80VAC

3. Peak current: 8A

4. Control mode: 32 - bit DSP vector closed - loop control technology

5. Limit frequency: 200KHZ

6. Protection function: overcurrent, overvoltage, error, tolerance protection

7. Input signal: differential, single-ended, pulse, direction, double pulse

8. Use temperature: 0-50

9. Use humidity: 40-90% RH

D, Leadshine AC servo

The fifth-generation high-quality AC servo LD5 series of Leisai Intelligent integrates American advanced servo algorithms, ten years of research and development, and five-generation upgrades. It has the characteristics of high performance, high reliability, and low cost, and realizes imported servo motion performance at the cost of domestic servos. Various international advanced technologies such as notch filtering, vibration suppression, inertia estimation, model tracking, interference observation and compensation are used to raise the level of China's servo to a new level. The LD5 series provides users with a solution whose price is between stepper and domestic servo and whose performance is close to that of Japanese servo. The cost of the whole set of servo is significantly lower than that of domestic servos. It is especially suitable for the upgrade of stepping products. It can increase the speed to more than 3000rpm. It is a small and medium power servo product especially suitable for China's national conditions. LD5 series low-voltage AC servo drives are small in size, easy to install, cost-effective, highly reliable, and easy to debug. Due to the use of medium and low voltage input, the work is stable and reliable with little interference. When multi-axis work can share a power supply to reduce costs.

Application field

Suitable for metal carving, precision electronic assembly equipment, ultra-high-precision image measurement, high-precision dispensing, medical equipment, logistics sorting, AGV, inkjet printing and other automation equipment. The effect is particularly good when used in equipment where users expect high precision, high speed, and high response.

((Of cause, we have many brand and model/type, if you want , pls contact with Mr.Xinyu, whatsapp is +86 18615216576)

五、Inverter

A、 Fuling

This model is the basic.

DZB300 Series General Vector Inverter

DZB300 series high-performance vector inverter adopts DSP control system to complete the optimized speed sensorless vector control and V/F control, with richer functions, more flexible application and more stable performance.

Applications

Metal processing, CNC machine tools, wire drawing machines, and other mechanical equipment

Municipal engineering, central air conditioning energy-saving transformation

Papermaking equipment, chemical industry, pharmaceutical industry, textile industry,etc.

Various fan and pump loads

Provide multiple fault protection functions: over current, over voltage, under voltage, overheat, phase loss, overload, etc

Two speed control modes: Vector control without PG(SVC) V/F control mode

8-stage simple PLC, multi-stage speed control and PID control

Input and output terminals are free to program, and users can combine multiple working modes according to their needs

0.75~15KW built-in braking units of various specifications, can connect the braking resistor directly if need to stop quickly.

Support many frequency setting modes: digital setting, analog setting, PID setting, communication setting

Starting torque Vector control without PG: 0.5Hz/150%(SVC)

With instantaneous power-off and non-stop function

The inverter above 37KW has a built-in DC reactor to improve the input side power factor and the efficiency and stability of the whole machine

B、 Best inverter

Main Characters:


1. Suits the occasions which demands:
Quick start quick stop;
Precise positioning;
High speed running.
2. Easy parameter bugging;
3. Turning to your desired special model by one key setting only
4. Parameter copy function, making the operation quite easy

These are important parts of the engraving machine. If you know them, please choose the accessories you like and tell me, I will quote you.

The below configuration is just for your reference.

Model

RT-1325

X*Y* Z Working size

1300*2500*200mm

Feeding height

200mm

Max milling Speed

24000mm/min

Min. Milling Speed

6000mm/min

Repositioning Accuracy

<0.01mm

Positioning Accuracy

<0.01mm

Spindle Running Speed

Water-cooling is 0~24000rpm , 0~18000rpm

Machine body and working table

Steel structure lathe bed,T-slot Aluminum with PVC

Work holding

By Clamp

Transmission system

Block is 20mm,

Rail is 20mm rail,

Ball screw is original TBI ,made in Taiwan

Rack and pinion,is original high precision tooth

Spindle

Power

3.5 KW air- cooling spindle or 3.2kw water-cooling

Inverter

Fuling 3.7 kw

Collet diameter

?3.175mm,4mm,6mm,12.7mm

Drive system

Stepper motor,leadshine driver

Control System

Ncstudio or DSP A11 or NK105....

Format DSP supported

G-code/NC/MMG/etc..

Limit Switch

Original Japan Omron brand

Electronics

Original Schneider

Working Voltage

380V, 50HZ 3 phase, optional 220V single phase, or 3 phase

Computer interface

USB

running environment temperature

0 degree ~45 degree

relative humidity

30~75%

Working Software

Windows98/xp/7

Compatible Software

Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad

Oil lubrication device

With oil lubrication device for block and ball screw

Package volume size

4.7CBM

1, Warranty is 18 months.

2, Accessories and parts details

Pls notice! This is our machine selling point.

Our machine package volume is only 4.7CBM! We take down the beam and put it under the table! Like below.so that its volume is very smaller, you can economize 60% freight money!and we have assemble manual to guide you, and it is very easy, only need you to turn screw!




If you have any questions, pls don’’t hesitate to contact with me

whatsapp/wechat is +86 18615216576
