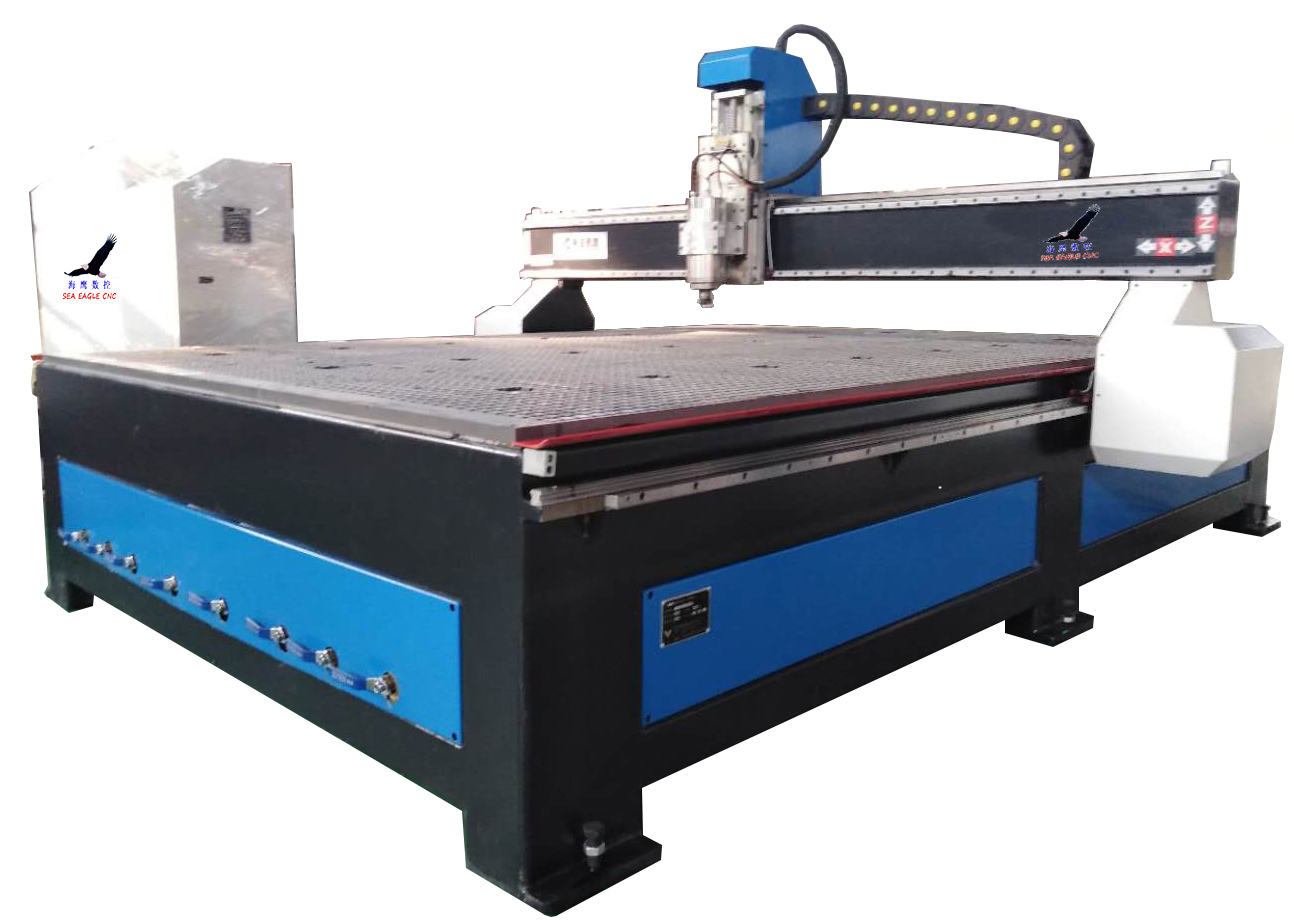

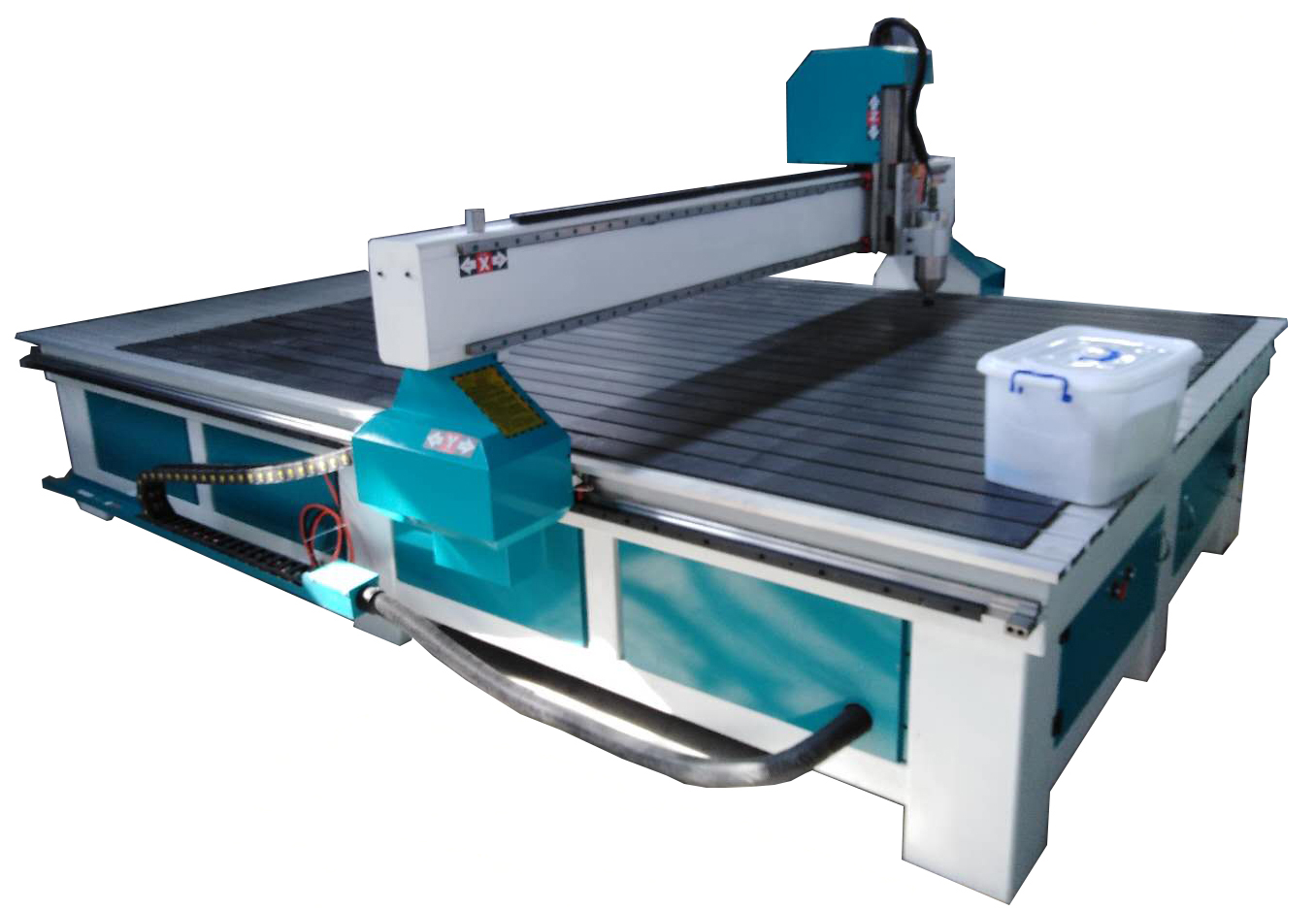

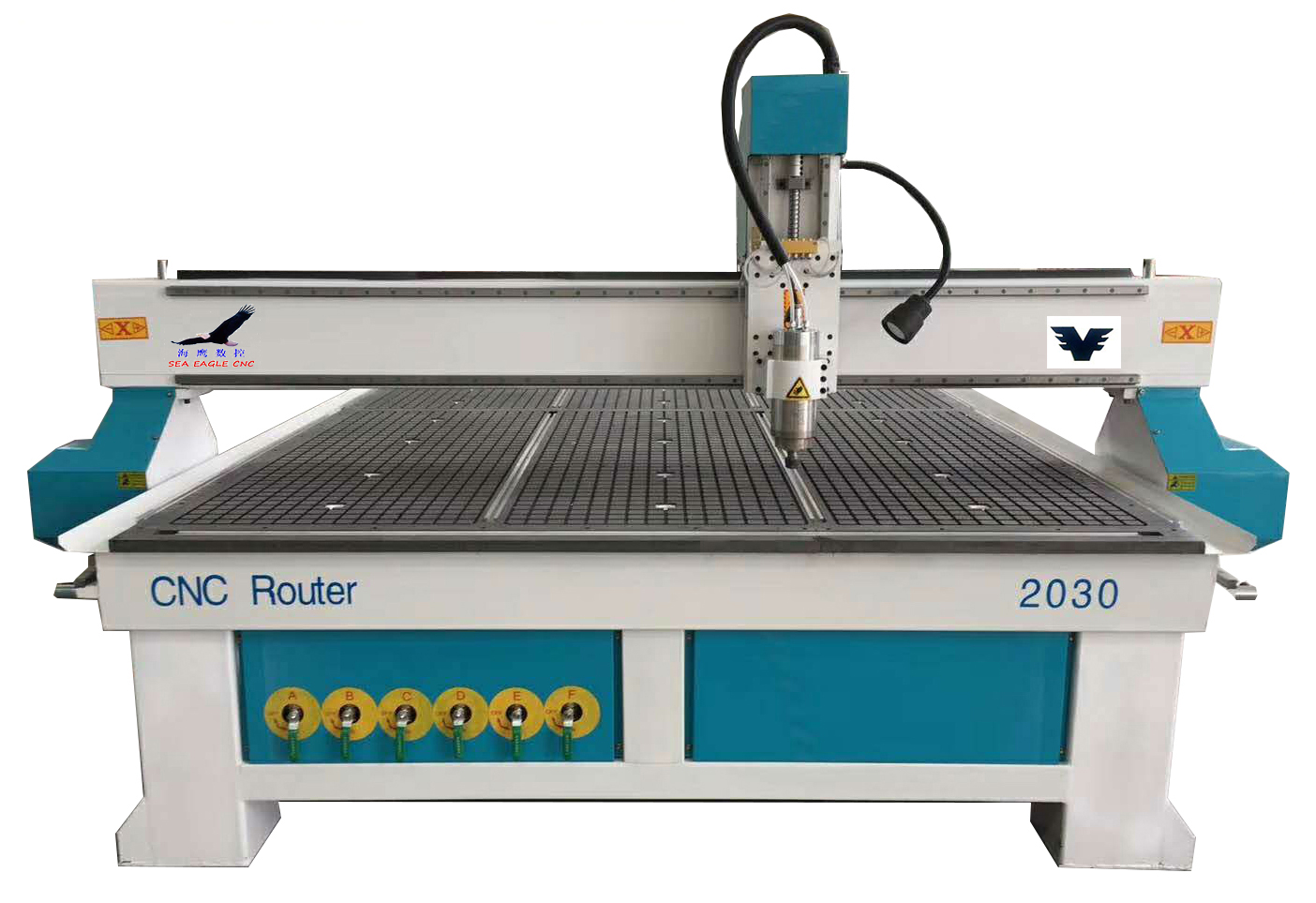

2030 cnc rotuer for woodworking
Model Number:2000x3000mm
Place of Origin:jinan of china
Added:2019-10-17
Views:times
Telephone:+86 531 67811996
Keywords:2030 cnc router, cnc router,
Next Previous

Detailed

Model

RT-2030

X*Y* Z Working size

2000*3000*200mm

Feeding height

200mm

Max milling Speed

24000mm/min

Min. Milling Speed

8000mm/min

Repositioning Accuracy

<0.02mm

Positioning Accuracy

<0.02mm

Spindle Running Speed

0-24000rpm

Machine body and working table

Steel structure lathe bed,T-slot Aluminum with PVC

Work holding

By Clamp

Transmission system

Block is 20mm,

Rail is 20mm rail,

Ball screw is original TBI ,made in taiwan

Rack and pinion,is original high precision tooth

Spindle

Power

4.5 KW water- cooling spindle

Inverter

Fuling

Collet diameter

?3.175mm,4mm,6mm,12.7mm

Drive system

Stepper motor,leadshine driver

Control System

DSP A11,

Format DSP supported

G-code/NC/MMG/etc..

Limit Switch

Original Japan Omron brand

Electronics

Original Schneider

Working Voltage

380V, 50HZ 3 phase, optional 220V

Computer interface

USB

running environment temperature

0 degree ~45 degree

relative humidity

30~75%

Working Software

Windows98/xp/7

Compatible Software

Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad

Oil lubrication device

With oil lubrication device for block and ball screw
