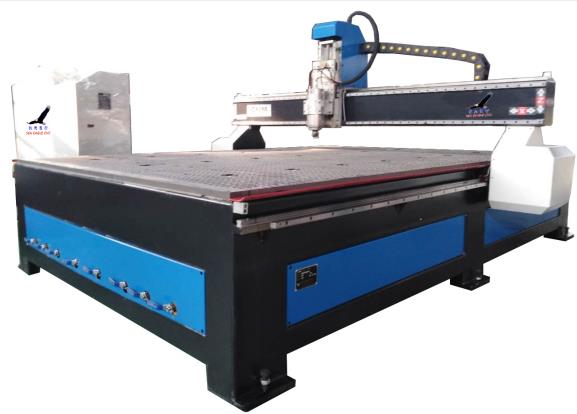

SE-2030 CNC router
Model Number:SE-2030
Place of Origin:china
Added:2019-07-09
Views:times
Telephone:+86 531 67811996
Keywords:2030 cnc router,cnc engraver,cnc machine,cnc carver,cnc router
Next Previous

Detailed

Many countries MDF size is 6x8.5foot (1830x2600mm),it is quite clear that 1325 model can not fit their demand.

We make 2030 model(2000x3000mm) just for them.

Characteristic

1) This machine come with big size and is widely used in cutting and engraving work

2) DSP/shanlong-L-1000/ mach3 controller system can be selected
3) X Y Z axis use Taiwan HWIN square linear rail to ensure the machine work rapidly and precisely.
4) Wholly cold-roll machine structure, which is very heavy and strong, this reduce the shaking
during working and increase the stability to ensure the machine have very high precision.
5) It is widely used in furniture, advertising and plate-making industry.

6) the body is made of 12mm thickness steel baord,it is very strong,can be used 50 years.

7) spindle power is 6kw, optional is 4.5kw, 7.5kw,3.0kw

8) it use the best motor, DELTA/Panasonic etc,


Technical details

Model

2030 CNC router

X*Y* Z travel size

2000*3000*200mm

Feeding height

200mm

Working Speed

18000m/min

Repositioning Accuracy

<0.02mm

Spindle Running Speed

0-24000rpm

Max working speed

24000mm/min

Max traverse speed

65000mm/min

Machine body and working table

Heavy duty Steel structure lathe bed,

Work holding

By vacuum adsorption with 5.5kw pump

Transmission system

X

HIWIN 25mm Square rail,helical rack and pinion

Y

Z

HAWIN 25mm square rail ,TBI double-net ball screw

Spindle

Power

5.5~6.0 KW spindle

Collet diameter

?3.175-?32mm

Drive system

Servo motor DELTA 1.0kw

Control System

Ncstudio 53C, 95A,or DSP control system or SHNALONG L-1000

Oiling system

Automatic

Machine weight

2500kg

Working Voltage

220V±30V, 50HZ or 380V 50Hz

Command Code

G Code, (*.nc*.mmg, *.u00,etc), *.eng PLT.Emg,CAD/CAM

running environment temperature

0 degree ~45 degree

relative humidity

30~75%

Working Software

Windows98/xp/7

Compatible Software

Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad
