Technology parameter |
|
|
name | size | brand | description |
spindle | 9KW | CC | Famous brand |
Drill unit | 5+4 | CC | High precision/stable performance |
Control system | SYNTEC | Taiwan | Friendly/stable operation interface |
Rail | X\Y30,Z轴25 | Taiwan | 5000 km maintenance free / 3 layer LACAS dustproof |
Servo motor | SYNTEC | Taiwan | High symmetry / high speed / high precision / wear resistance |
Vacuum table | Vacuum table | CHINA | The world's top quality / quality stability, strong adsorption |
Rack | M2 | GERMAN | High speed / high precision / wear resistance |
reducer | VRSF-8C-850-LV | SHIMPO |
|
Vacuum pump | KVT3.250 CBM/Hour | 7.5KW pump | High adsorption force |
Dust collector | 4KW double bags | Made in china |
|
thermorelay | LRD21C(12-18A) | CHNT | Famous brand |
AC contactor | LC1D18M7C | CHNT | Famous brand |
Cable drag chain | 2600.07.075.0 | shanghai | High flexibility: more than 300,000 times of bending resistance |
auxiliary | Automatic up and down | Made in china |
|
lubrication system | automatic |
|
|

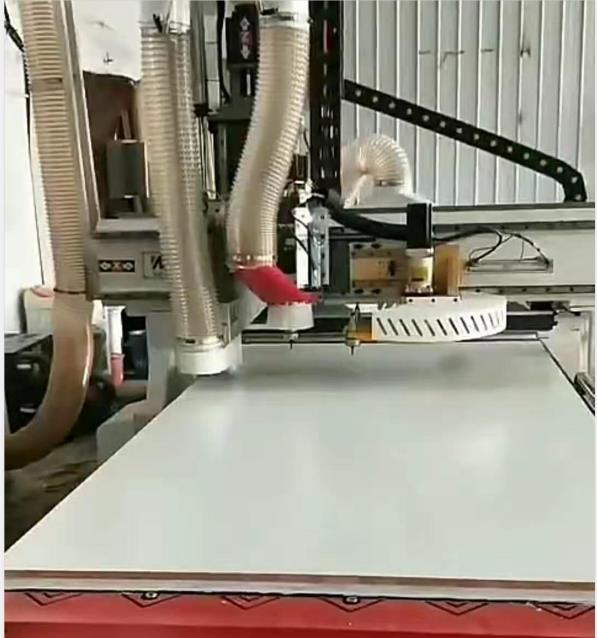

product description:
Change the tradition, no need to push the table saw, no professional woodworker, no professional draftsman,
suitable for cabinets, wardrobes, panel furniture, furniture, office furniture, wooden doors, etc. Fast processing speed,
good stability and high precision. Over the years, we have always been committed to creating stable and reliable
products, surpassing the expectations of our customers, and constantly strive to innovate. It has set up branches
in Shanghai, Beijing, Guangzhou, Zhejiang, Fujian and other places.
Adhering to the concept of "integrity, quality, innovation", we have great dreams, and we will create value for our
customers with excellent products and perfect after-sales service, and strive to become a company that is respected
by customers.
core advantages :
■ Function: The product belongs to the heavy-duty machining center and is suitable for engraving, boring, drilling,
cutting, chamfering and other diversified products.
■ Structure: The fuselage is welded by high-strength thick-walled steel pipe. It is annealed and sandblasted for anti-rust
treatment, and the deformation accuracy is guaranteed.
■ Accessories: The products are equipped with world-renowned brands such as German rack, Taiwan screw guide,
Japanese speed reducer and other high-end accessories.
■ Accuracy: Excellent accessories and precise inspection devices make the product achieve perfect positioning and
running accuracy.
■ High speed: High-power 1500W servo motor and precision reducer are directly connected to the design, high
torque, high kinetic energy and high efficiency.
■ Countertop: Sai Cheng Yi Gao special vacuum warehouse countertop design, the structure of the solid sheet
is not easy to deform, the adsorption force is more powerful.
■ Tool magazine: equipped with 20 stepless variable speed servo tool magazines, super fast tool change, low failure
rate and higher precision.
中心技术配置参数表 |
Run speed | 80-100m/min | Working speed | 12~30m/min |
Spindle power | 9KW ATC spindle | Spindle speed | 3000~24000rpm |
Tool magazine capacity | 16 pcs,with a full set of handles, collet. |
Control system | SYNTEC |
Servo motor | SYNTEC 1.2KW |
Ball screw | HIVIN |
Transmission system | HIVIN rail ,PMIφ3210 ball screw |
Electrical components | Hpmont-11KW inverter 、CHNT switch、Shanghai high-flexible shielded cable |
Table model | Special design structure, super vacuum adsorption table (specific technical process confidentiality) |
Other accessories | Swedish SKF bearing, Taiwan Yadak Airtac cylinder |
attachments | 7.5KW water circulation vacuum pump, 4KW double cylinder high power dust collector |
Processing size | 1300*2500*180mm |
Dimensions | 3600*2400*2100 | weight | 3.8T |
Total power | 20KW | voltage | 380V/50HZ |
Gas standard | recommended to use a 15KW screw air compressor with a 1.5 m high gas storage tank. |
Wire standard | The machine uses 10 square four-core copper wire / vacuum cleaner vacuum pump with 6 square four-core copper wire |
