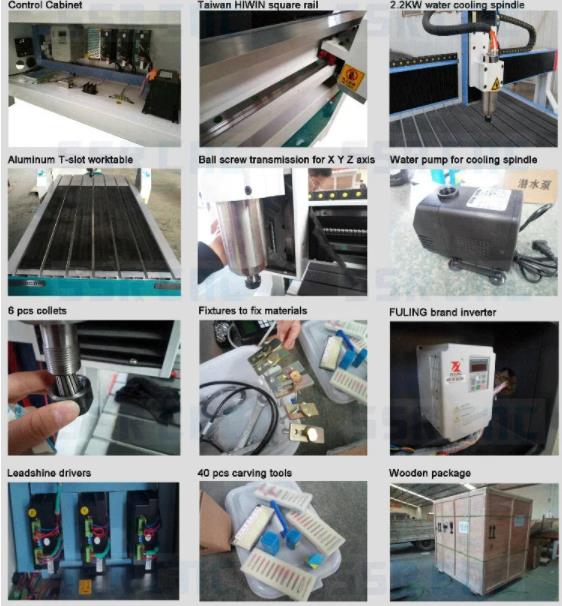

Features:
1) Cast iron machine structure and all-metal frame, very strong and durable. This can restrain
resonance and ensure the high working quality.
2) X Y Z axis adopt Germany NEFF ball screw
3) Own the function of continue working on break point when power off suddenly.
4) Applicable for 2D 3D processing on plastics, wood, soft metals, composite materials and etc.
5) NCSTUDIO control system, supported multiple input formats
Technical Parameters:
Machine Model | SE-3030,4040,6060,1212,1224,1325,2030 |
Table Size(MM) | 300x300mm,400x400mm,600x600mm..... |
Z Traveling | 80~450mm |
Table Structure | Aluminum T-slot/vacuum adsorption table |
Spindle Power | 0.8~5.5KW |
Max. Spindle Speed | 24000 RPM/min |
Max. Traveling Speed | 6000~24000mm/min |
Max. Working Speed | 6000~18000mm/min |
Processing Accuracy | ±0.01mm |
Preposition Accuracy | ≤0.01mm |
Driving Mode | Powerful stepper motor/servo motor |
Command Language | HPGL, G-Code |
Operation System | NCSTUDIO/DSP A11/DSP A18 |
Auto Tool Sensor | With |
Working Voltage | AC220V/380V/415V, single/3 phase |
Net Weight/Gross Weight | 330~2000KGS |
Application Industries:
Mainly used for engraving, cutting, 2D&3D milling, drilling
Applicable Materials:
1) Wood, plastic, plexiglass, PVC, etc
2) Composite materials, particleboard, fiberboard, MDF, plywood
3) Soft-metals: hard aluminum, aluminum, brass, copper
Applicable Industry:
The advertising industry, creative workshop, souvenirs, interior and decoration industry
Optional:
1) DSP control system
2) High power 2.2KW/3.2KW/4.5KW water cooling spindle
3) Rotary attachment(fourth axis)
